Die Design & Manufacturing for Fuel Rails in Automotive Industry

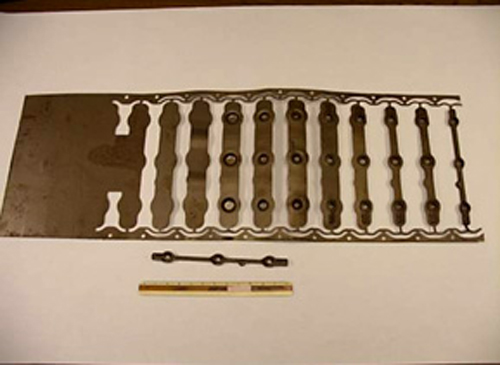

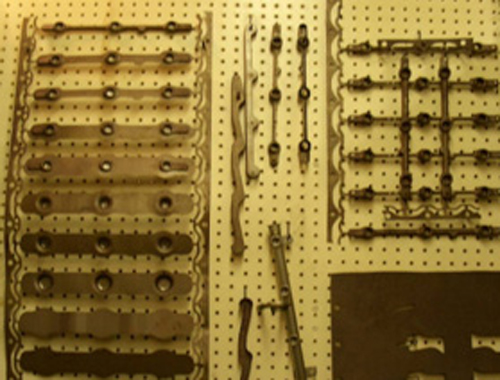

Centaur recently designed and built a series of dies that would be used to produce fuel rails for the large truck and automotive industry. Designed using Solid Edge CAD software, these dies were made from D2, A2, and HRS commercial steel – metals chosen for their superior hardness and wear-resistance. We additionally manufactured all product holes and intricate burg apotheke windeck features using wire EDM machinery. To make certain that these dies satisfied our client’s high expectations for quality, we inspected all fixtures and performed 30 pc runoff in our shop to ensure customer approval. Our high-quality dies not only matched all customer supplied print dimensions, they also fulfilled automotive standards.

Request Quote

Project Highlights

Industry NameAutomotive
Project OverviewDesign & Build dies to produce fuel rails for the auto industry and meeting auto industry standards
IndustryLarge Truck
Standards MetAutomotive Standards
Equipment Used/AccessoriesCNC, EDM
Materials UsedD2, A2, HRS
Stamping: Commercial Steel
Approval Processes30 pc runoff in shop with customer approval, and fixture inspection process
Design WorkSolid Edge Cad Software
